LED Cabinet lighting lamp for Indoor High Voltage Switchgears

Name: LED Cabinet lighting lamp for Indoor High Voltage Switchgears
Brand: QIUPU
Price: 1 USD

Quality LED Cabinet lighting lamp for Indoor High Voltage Switchgears wholesale

Brand Name : QIUPU

Model Number : GM-1/LED

Certification : IEC

Place of Origin : WENZHOU

MOQ : 500 PCS

Payment Terms : T/T, Western Union

Supply Ability : 500000 PCS/Months

Delivery Time : 5 Days

Packaging Details : Cartons

Material : Plastic

Rated Power : 5W-40W

Size : 101*71

Type : GM-1

Rated Current : 16A

Work Voltage : 110V-220V

Contact Now

LED Cabinet lighting lamp for Indoor High Voltage Switchgears

High and High Structure and Equivalent Structure
The standard medium cabinet is high and low structure, front side height is 2300 mm, back side height is 2000 mm; And the contour structure is consistent. Gaodigui's busbar is arranged like a grain, and the instrument room is a separate structure, detachable. The contour cabinet busbar is arranged in a vertical zigzag, and the instrument room and the cabinet body are integrated. The same height structure has larger mounting space than the high and low structure, and is also convenient for production and operation maintenance.

Item			Technical data
Rated voltage (KV)			3.6		7.2		12		24		40.5
Rated frequency(Hz)			50
Insulator(capacity)	insulating	Frequency withstand voltage 5 min (KV)	25	32		42		68		100
		Frequency withstand voltage 1 min (V)	2000
		Lighting impulse withstand voltage (KV)
		Local discharge (pc)
	Power		25W

LED Cabinet lighting lamp for Indoor High Voltage Switchgears

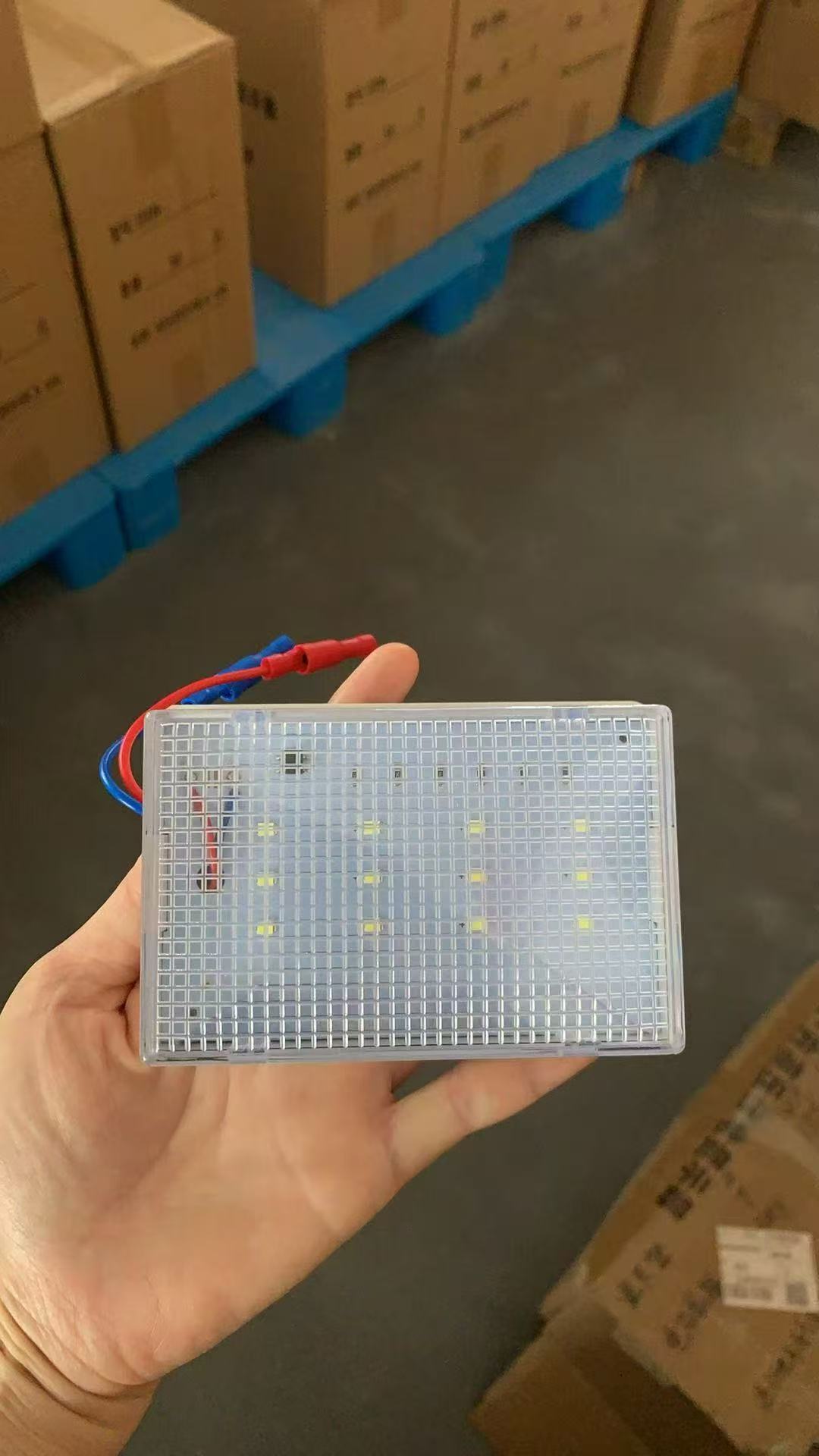

LED Cabinet lighting lamp for Indoor High Voltage Switchgears Images
